Working principle of PSA oxygen nitrogen separation equipment

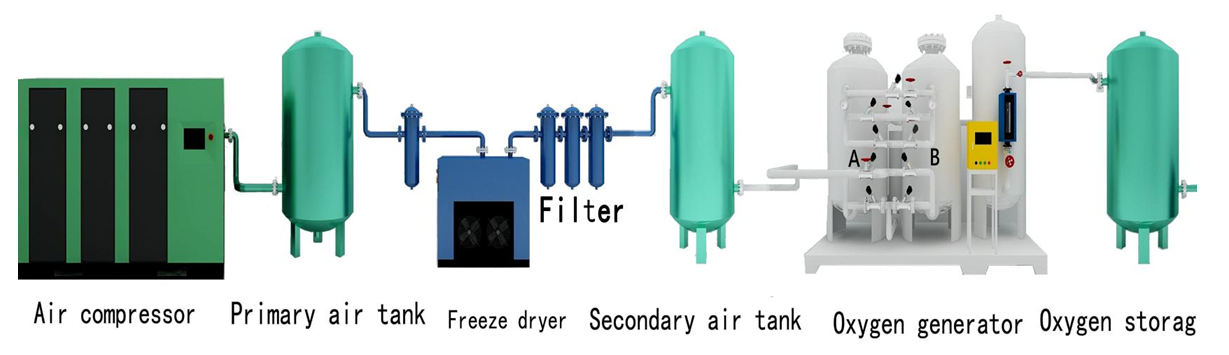

There are two adsorption towers equipped with specialized zeolite molecular sieves, A and B. When clean compressed air enters the inlet end of tower A and flows through the zeolite molecular sieve towards the outlet end, N2, CO2, and H2O are adsorbed by it. The product oxygen flows out from the outlet end of the adsorption tower. After a period of time, the zeolite molecular sieve in tower A is saturated with adsorption, and tower A automatically stops adsorption. Compressed air flows into tower B for nitrogen absorption and oxygen production, and regenerates the molecular sieve in tower A. The regeneration of molecular sieves is achieved by rapidly lowering the adsorption tower to atmospheric pressure to adsorb NC, O2, and H2O. Two towers alternate adsorption regeneration to complete oxygen nitrogen separation and continuously output oxygen. The above process is controlled by a programmable controller. When the oxygen purity at the exhaust end is less than the set value, the PLC program will activate and automatically open the vent valve to vent the unqualified oxygen, ensuring that the unqualified oxygen flows to the gas consumption point. When venting gas, use a muffler to reduce noise to less than 85 decibels.
characteristic:
☆ Unique molecular sieve protection measures, low dosage, uniform distribution of fillers, and long service life.
☆ Low energy consumption, high and stable oxygen purity of the product
☆ Reasonable internal structural components, uniform airflow distribution, and reduced high-speed airflow impact.
☆ The automation level of the entire equipment is high.
☆ Multi functional monitoring system, realizing online LCD display of gas volume, purity, and pressure, equipment fault alarm and maintenance prompts, comprehensively grasping the operation status of equipment.
☆ It can be fully integrated with a modular design, making installation and debugging simple and fast.
☆ Optional oxygen flow rate and remote monitoring system.
